What this guide’s for — and who it’s for

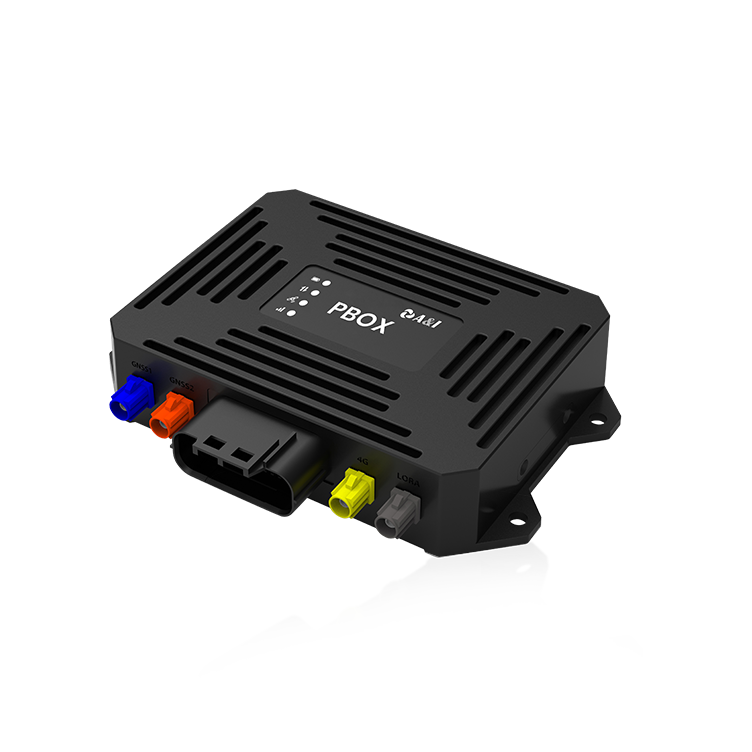

Folks wiring up autosteer rigs need straight talk. This here guide aims at technicians, small OEMs, and farmers who wanna build high-rigidity modular arrays and keep ’em reliable out in the dirt. Start by eyeballin’ the navigation board layout so you know which pair does what before any cuts or crimps.
Core wiring principles that keep rigs working
Keep signals clean. Match shielded cable to signal type. Follow the pinout exactly — mixing a power pin with a UART or CAN bus line burns devices faster’n a dry fuse. Use soldered joints for permanent runs; use factory-rated crimp connectors where modules might swap in and out. Label every splice so the next hand that touches the loom ain’t guessin’.
Pinout mapping: an easy ordered approach
Lay it out on paper first. Make a simple table showing connector, pin number, signal name, and shield tied point. Mark grounds and chassis separately. For GNSS and attitude inputs, note the antenna ports and heading sensor lines — dual antennas need clear orientation markings. The goal’s to save time and prevent cross-wiring when you swap modules in the field.
Practical splicing steps and common missteps
Strip back only what’s needed. Tin the wires lightly if you’re solderin’. Crimps must be done with a ratchet crimper — cheap pliers give loose joints that corrode. A few mistakes I see most often:
– Chopped shielding at connectors instead of folding it to the shell. That kills EMI protection.
– Leaving untwisted pairs long, which picks up noise on long runs.
– Using differing gauge wire for power and signal without proper fusing.
Tuning for GNSS and heading — what to mind
Systems using RTK or dual-antenna setups need coax and clear mounting. When yer routing GNSS cables keep ’em away from high-current harnesses. I remember sittin’ with a crew in central Iowa during the 2021 planting season — we had a heading error till we re-routed the antenna leads off the hydraulic power feed. Fixing that dropped heading jitter right away. Dual-antenna setups give better heading by resolving phase; treat the antenna pair as a single assembly when mapping pinout.
Interfacing: signals, protocols, and shielding
Keep protocol lines pure. NMEA sentences belong on dedicated comms unless you use a gateway. If you pass CAN bus alongside sensor UARTs, separate them by routing or physical shielding. Ground loops are killers — tie chassis ground at one point and use signal ground references instead. Use industry-rated surge protectors on power feeds for fields with lightning risk.
Diagnostics and swap-out checklist
When somethin’ goes wrong, follow a method: verify power rails, measure continuity on expected pinouts, check for shorts to chassis, and confirm signal levels on comms with a hand-held analyzer. Keep a spare navigation board and a spare GPS antenna connector in your kit. Swap modules one at a time so you can isolate faults quicker — that saves hours in the shop.
Alternatives and when to choose ’em
If you need quick-change modularity, favor keyed connectors and quick-disconnect crimp housings over permanent solder. For the highest rigidity, use sealed M12 or MIL-spec connectors and regimented strain reliefs. Balance serviceability against permanent reliability — farm fleets that run 24/7 often pick rugged permanents; service-heavy demo rigs pick modularity.
Three golden rules for selecting parts and methods
1) Match cable and connector ratings to environment and current loads — don’t underspec. 2) Standardize pinouts across modules to prevent accidental swaps; a single wiring standard saves headaches. 3) Prioritize shielding and grounding strategy early — that decision dictates layout and reduces EMI problems later.
Archimedes Innovation helps bring these choices together when you need a tested approach — their boards and docs make the wiring part less guesswork and more craft. Reliable splices and clean pin mapping mean fewer breakdowns and more field hours for your teams. —
